QSLH Series Stainless Steel Filter with 5μm Filtration Precision 40μm Optional and G1/8 to G1 Connection for Compressed Air

Name: QSLH Series Stainless Steel Filter with 5μm Filtration Precision 40μm Optional and G18 to G1 Connection for Compressed Air
Brand: NBSANMINSE
Price: 1 USD

Brand Name : NBSANMINSE

Model Number : QSLH-B15NCHW

Certification : ISO9001

Place of Origin : CHINA

MOQ : 10PCS

Price : Negotiation

Payment Terms : L/C,T/T

Supply Ability : 10000PCS

Delivery Time : 5-30days

Packaging Details : Box

Contact Now

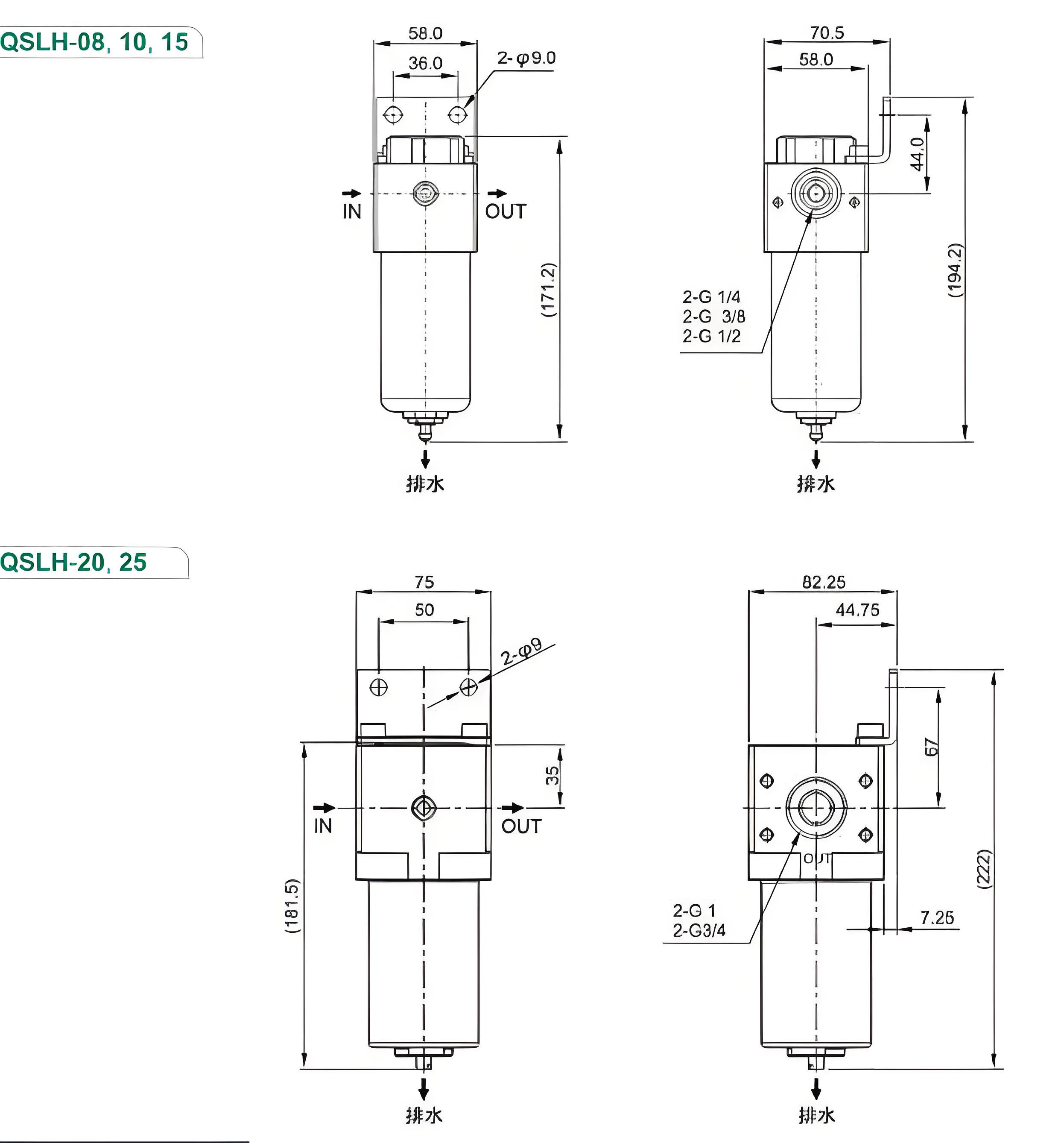

model	QSLH-06	QSLH-08	QSLH-10	QSLH-15	QSLH-20	QSLH-25
The uses a fluid	Compressed air
Connection Bore	G1/8	G1/4	G3/8	G1/2	G3/4	G1
Pressure Regulation Structure	Piston Type
Body Material	Stainless Steel SUS316
Cup Material	Stainless Steel SUS316
Filter Element Material	Stainless Steel SUS316
Filtration Precision	5μm (Standard), 40μm (Optional)
Operating Pressure	QSLHB.0.5: 0.5 - 12kgf/cm², QSLHB.12: 12 - 28kgf/cm²
Maximum Inlet Pressure	60kgf/cm² (Visual Window: 15kgf/cm²)
Maximum Flow Rate(Vmin)(ANR)	2400		2450	3030	B9600/19200
Ambient Temperature	-10-70℃
Filter Cup Capacity	100cc
Standard Drainage	Semi-automatic (requires draining below 0.5kgf/cm²)
Auxiliary Accessories	Plug

QSLH	B	15	N	C	H	W
Series Number	Pressure	Connection Port Diameter	Connection Port Thread	Filtration Precision	Drainage Method	Visual Window
Stainless Steel Filter	Blank: 12 - 28kgf/cm²	06: G1/8"	Blank: G	PE Filter Element	Blank: Semi-automatic Drainage	Blank: None
	B: 0.5 - 12kgf/cm²	08: G1/4"	N: NPT	Blank: 5μm	H: Manual Drainage
		10: G3/8"	R: Rc	C: 40μm	D: Automatic Drainage
		15: G1/2"
		20: G3/4"
		25: G1"
